Bluetooth controlled car with LCD and OLED screen

Prototype
Bluetooth controlled car with LCD and OLED screen - Visual 1

/ Açıklama

It is driven with L293D motor driver using 2 front wheels and one caster wheel using Arduino Uno board. It is controlled via Bluetooth with HC06 Bluetooth module on it. The LCD screen and OLED screen on the front communicate with Arduino Uno via I2C. Current control is provided with LM2596 Power Module and arranged as desired.

Devre Şeması

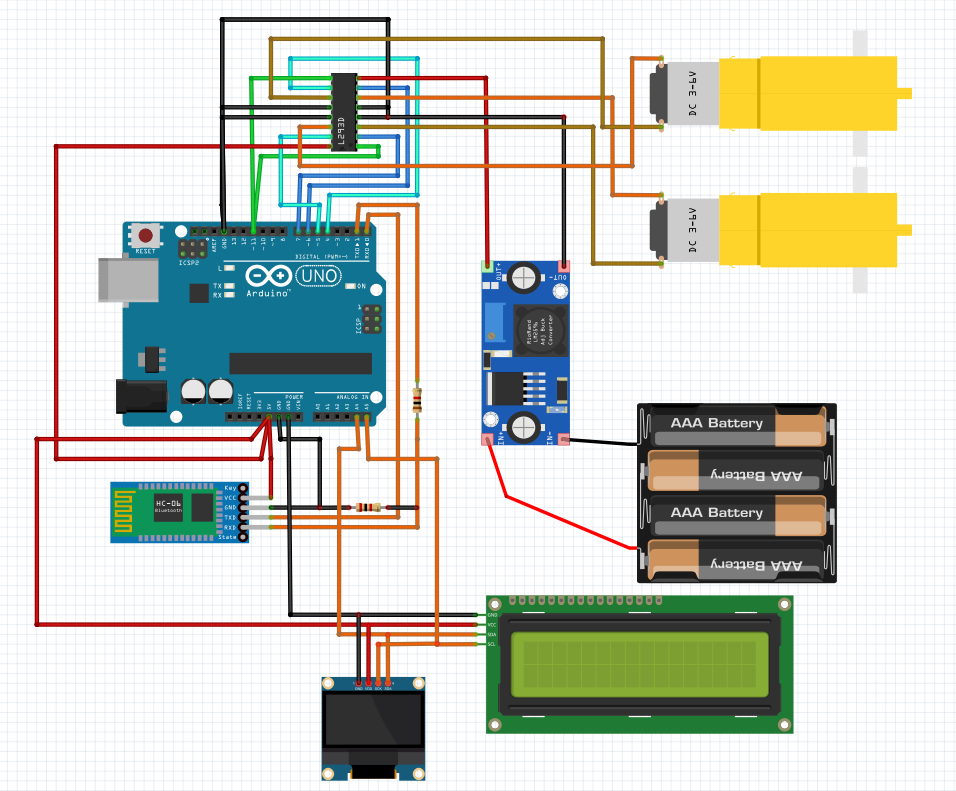

Circuit Schematic

[ SENSOR_PROTOTYPE_SCHEMATIC_V1 ]
